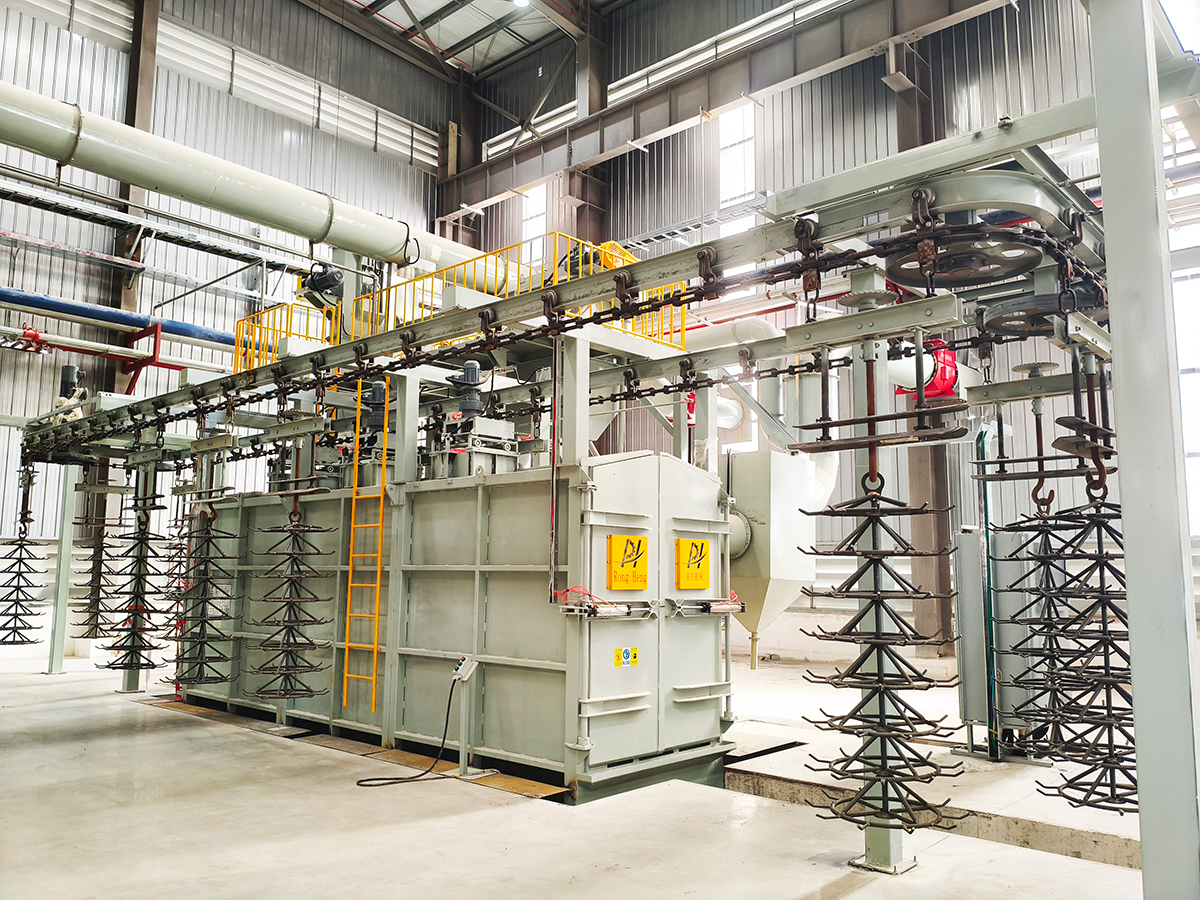

Suspended chain shot blasting machine

The Q38/48/Q58 series suspension chain through shot blasting machine can be divided into continuous, step-by-step, and stacking modes that move with the suspension chainFormula. This machine is suitable for surface cleaning and shot blasting strengthening of various types and large quantities of cast iron parts, cast steel parts, forgings, and steel structural parts,The cleaning effect is particularly good for engine cylinder cover, motor housing, wheel hub, steel cylinder, etc. It's cars, tractors, diesel engines Ideal choice for industries such as motors and valves.

Continuous

Continuous type is to suspend the workpiece on the hanging chain hook, continuously circulate through the shot blasting chamber at a constant speed, enter the cleaning chamber, and then

Under the drive of the rotating mechanism, the workpiece rotates and moves forward while receiving cleaning.

Step by step

Step by step method is to group the hanging hooks of the workpiece into groups (usually 2-3 hooks per group, and the number of hook groups is based on the customer's working frequency)

The requirement depends on the length of the entire cleaning line. The working sequence is loading, waiting, shot blasting (rotation), waiting for a while The material works in a cycle of waiting and loading.

Accumulation type

Accumulation type is to park an empty trolley at a fixed point in the workpiece loading area and wait for loading. After the loading is completed, the stopper will automatically release. Trolley

Before running to the shot blasting room, enter the waiting state, and at the same time, the workpieces carried by a group of small cars in the shot blasting room are being shot blasted and cleaned.

When the indoor car leaves the shot blasting room after completing the shot blasting, the waiting area stopper automatically releases and the car enters the shot blasting stage; same

The next car is waiting, and when the workpiece is cleaned, it automatically runs to the waiting area and waits for unloading. in turn Continuous cyclic operation.

Technical Parameter
