Shot Blasting Machine

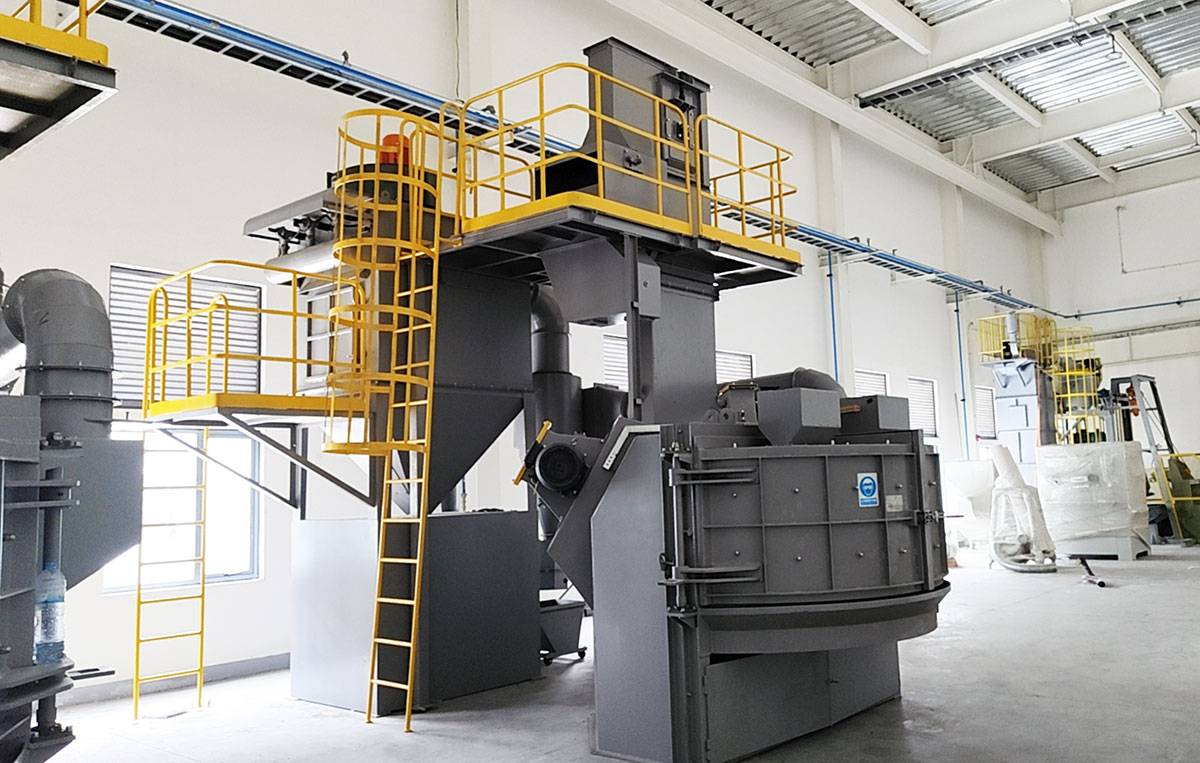

Rotary shot blasting machine
Rotary shot blasting machine is suitable for cleaning flat, thin-walled, and collision prone parts with sand and oxidation on the surface in casting, forging, and heat treatment workshopsAttachments such as skin. Through shot blasting cleaning, rust and dirt on various workpieces can be removed, improving the surface of the workpieceQuality; At the same time, it can also improve the internal stress of the workpiece, achieve the purpose of strengthening, and enhance the fatigue resistance of the workpiece.
Rotary shot blasting machine
Rotary shot blasting machine is suitable for cleaning flat, thin-walled, and collision prone parts with sand and oxidation on the surface in casting, forging, and heat treatment workshopsAttachments such as skin. Through shot blasting cleaning, rust and dirt on various workpieces can be removed, improving the surface of the workpieceQuality; At the same time, it can also improve the internal stress of the workpiece, achieve the purpose of strengthening, and enhance the fatigue resistance of the workpiece.
Technical Parameter
Equipment model Q3512 Q3516 Q3525 Turntable diameter Φ1200mm Φ1600mm Φ2500mm Rotating Speed 0.36r/min 0.36r/min 0.36r/min Maximum load capacity of turntable 200kg 600kg 1000kg Clean the external dimensions of the workpiece 300x130x120mm 700x250x250mm 1000×800x400mm Shot blasting machine model Q034 Q034 Q034 Bullet diameter Φ0.5-1.5mm Φ0.5-2mm Φ0.5-2mm Elevator shot blasting volume 160kg/min 160kg/min(2台) 240kg/min(2台) Total power
(excluding dust removal)
≈11kw ≈19kw ≈32kw Machine dimensions 1200x1500x3600mm 2200x2700x4000mm 3200x2850x4500mm
